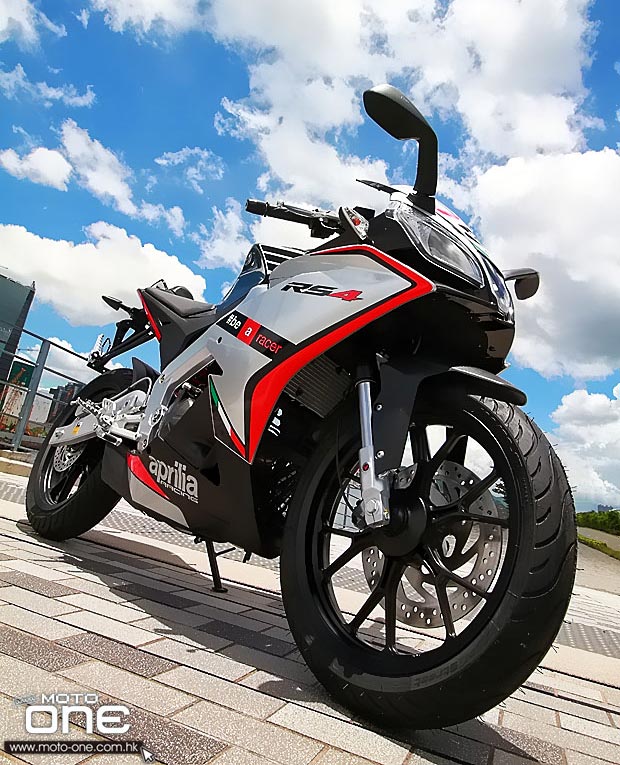

●2014 Aprilia RS4-125 #bearacer 限量特別版
#bearacer (be a racer)是Aprilia本年参战WSBK的口号,简单而直接带出战意,而两台 RSV 4 战车亦拉上#bearacer的专属拉花。经过8站WSBK比赛后,两名Aprilia车手 50号的沙利文(Sylvain Guintoli)及33号米兰迪(Marco Melandri),取得WSBK总积分榜暂列第二及第五名。

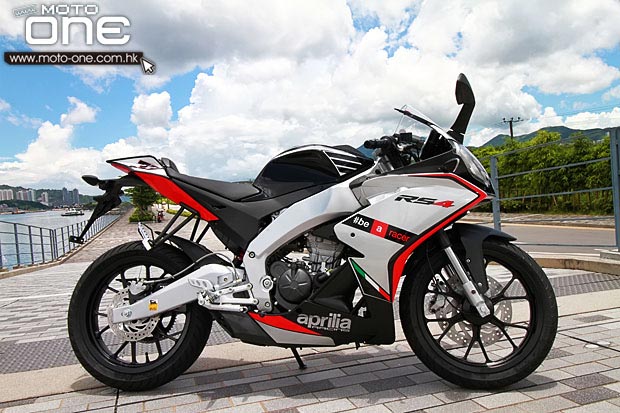

2014 Aprilia RS4 125 #bearacer 限量特別版车身拉花完全仿傚了33号米兰迪(Marco Melandri)的RSV 4 战车,令到这台外型忠于原著RSV 4设计的小跑车 RS4 125 更添战意,有型且跑味更浓。。

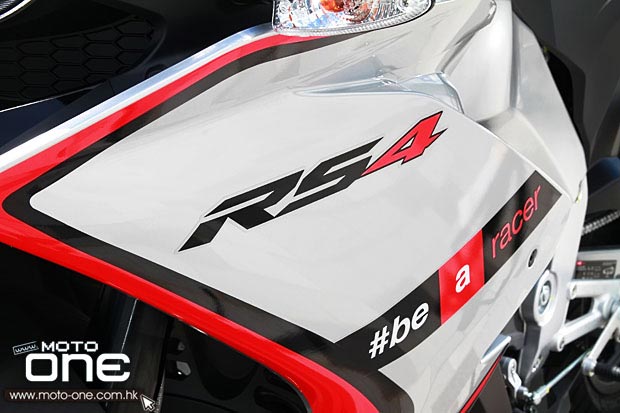

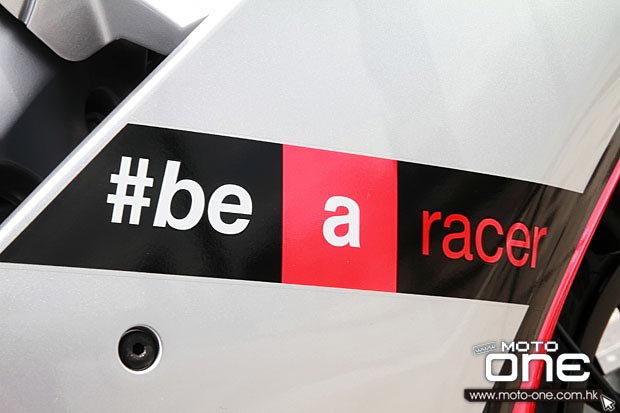

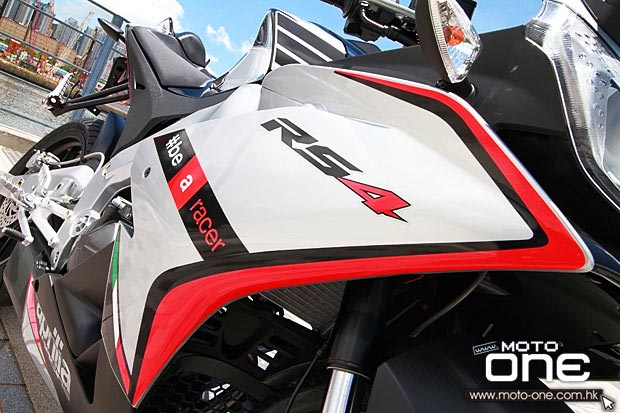

●#bearacer (be a racer)是Aprilia本年参战WSBK的口号。

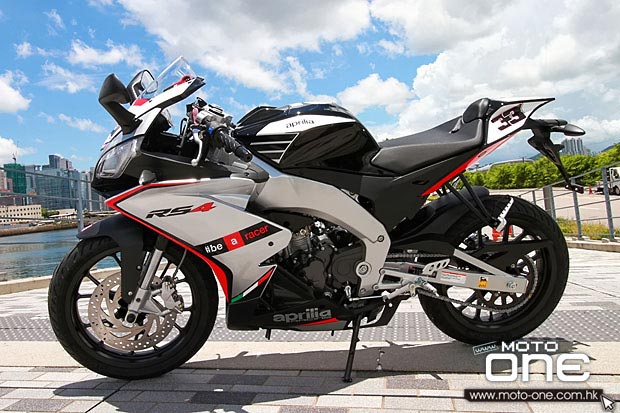

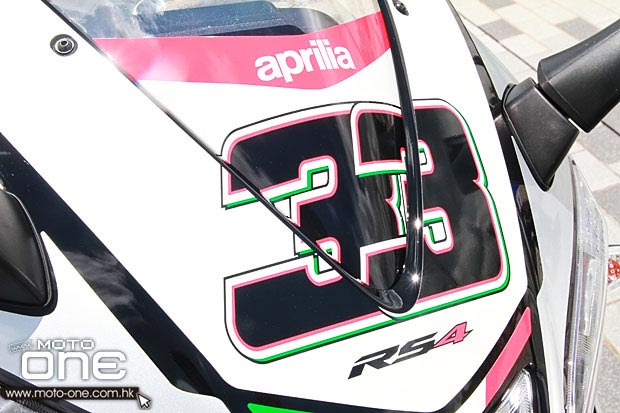

●2014 Aprilia RS4-125 #bearacer 33号拉花, 是米兰迪於WSBK比赛编号。

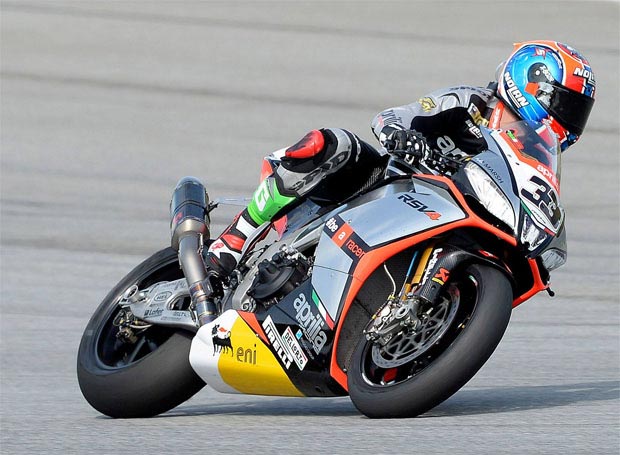

●WSBK APRILIA 33号米兰迪比赛相片。

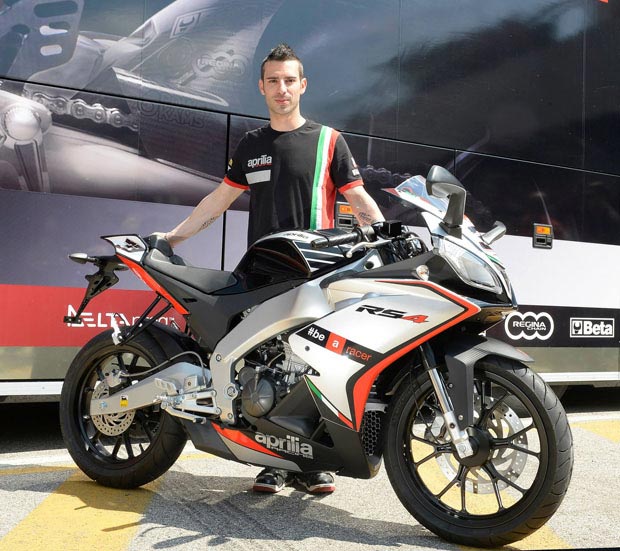

●米兰迪与2014 Aprilia RS4-125 #bearacer 限量特別版。


●WSBK APRILIA 50号沙利文比赛相片。

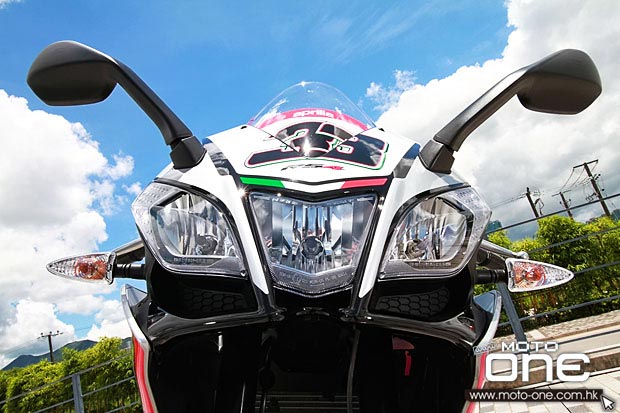

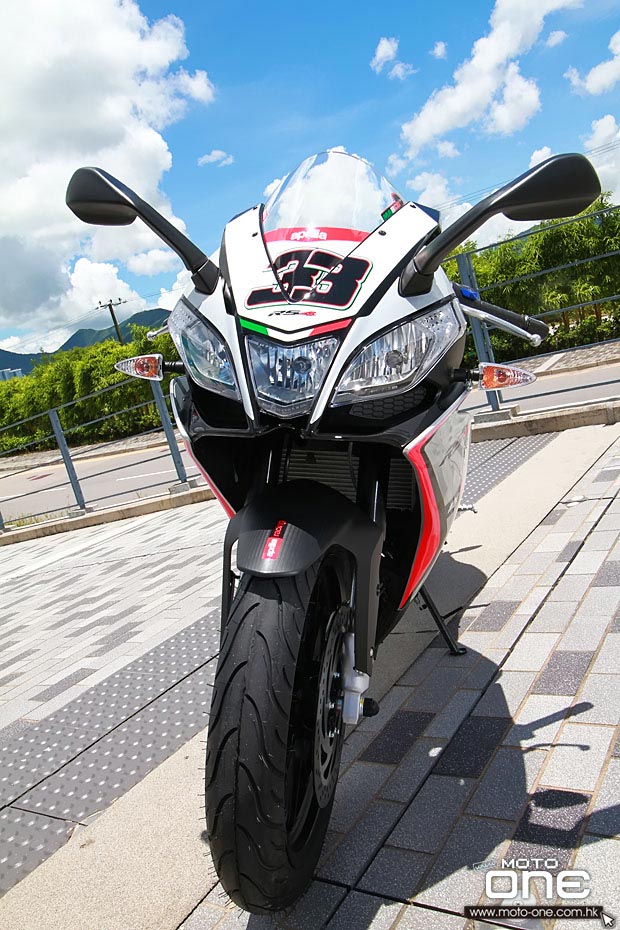

●不论大灯、细灯及彷入风位跟RSV4没有分別的Mini Superbike。

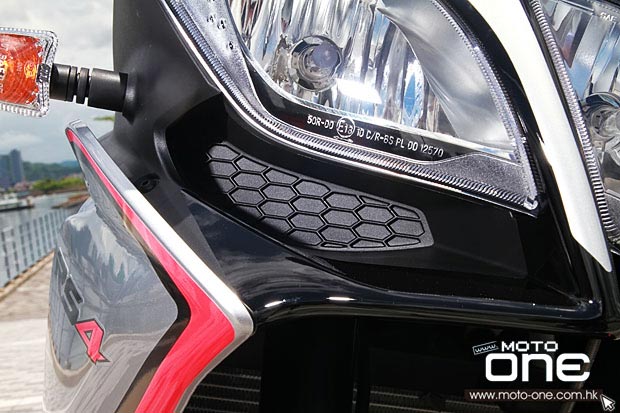

●设计美观的彷入风位。

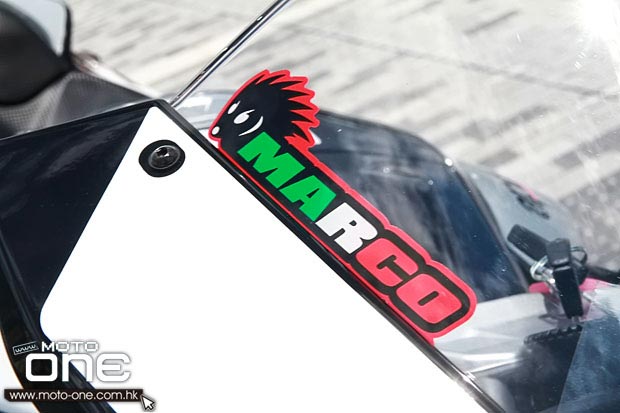

●33号米兰迪(Marco Melandri)。

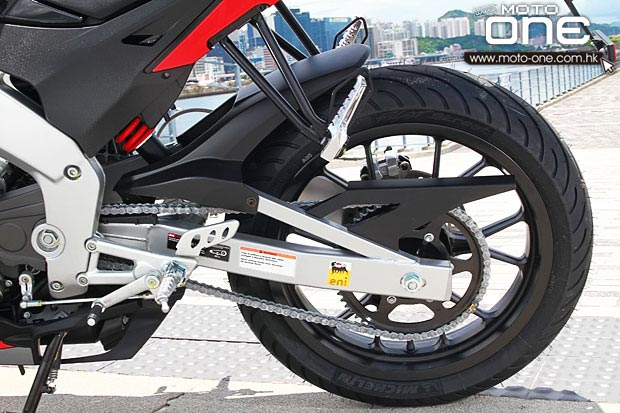

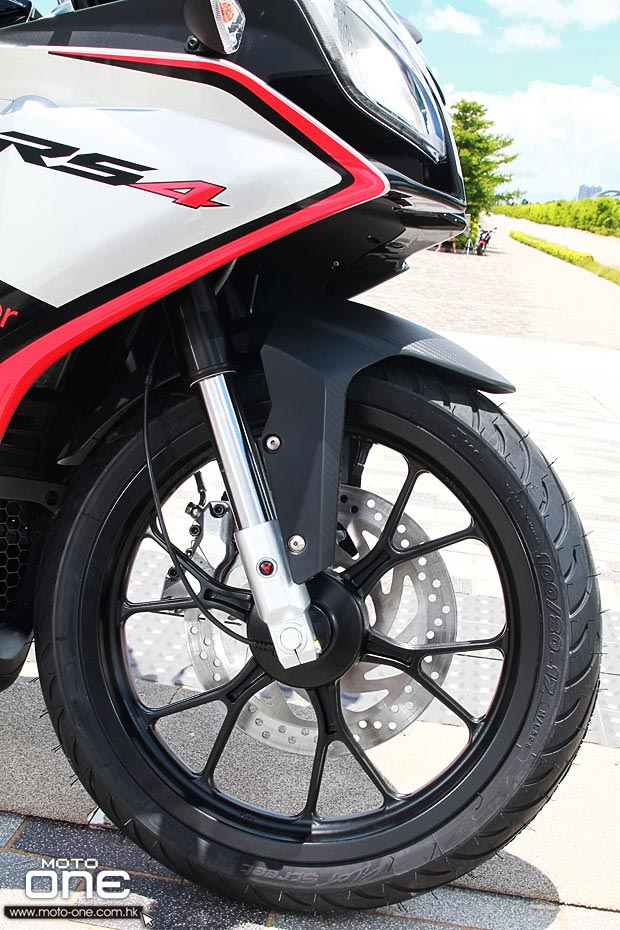

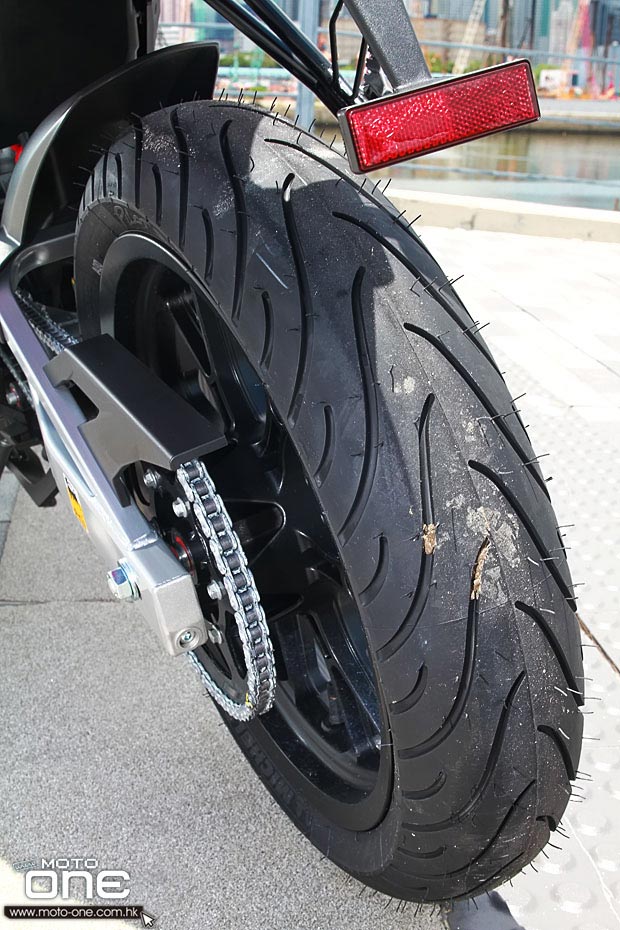

●2014 Aprilia RS4-125 #bearacer 前后轮胎采用米芝莲Pilot Street。

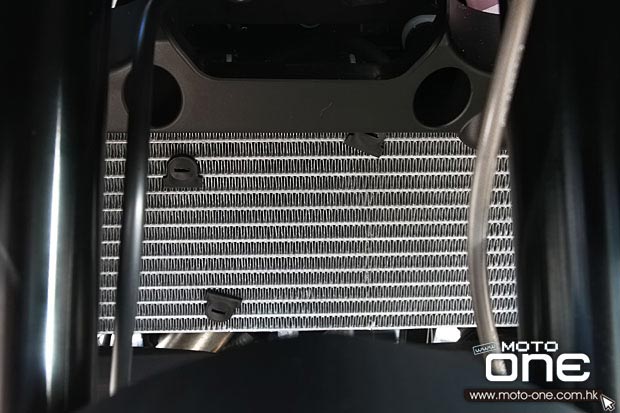

●散热水箱,有助高转时提升散热效能。

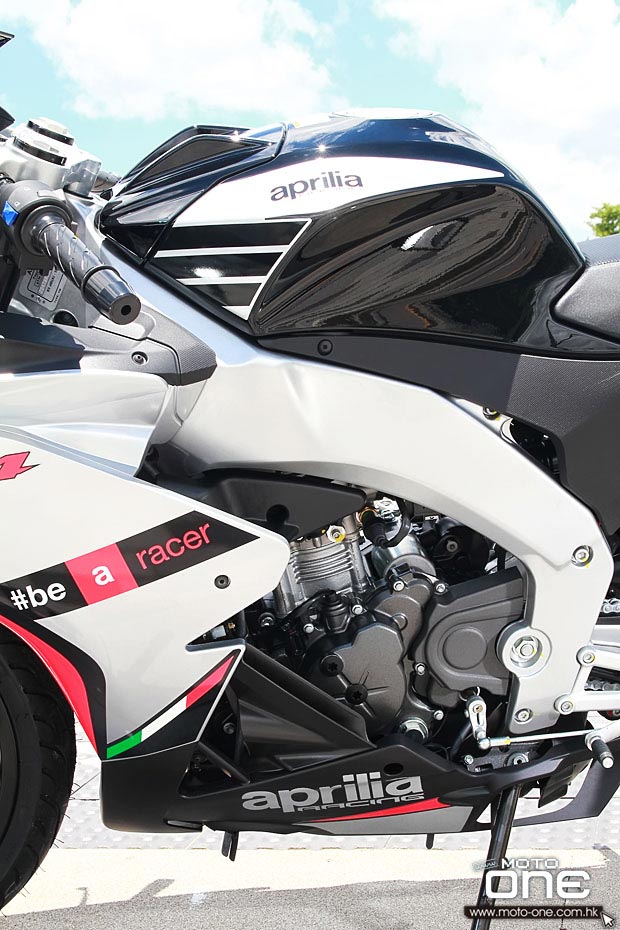

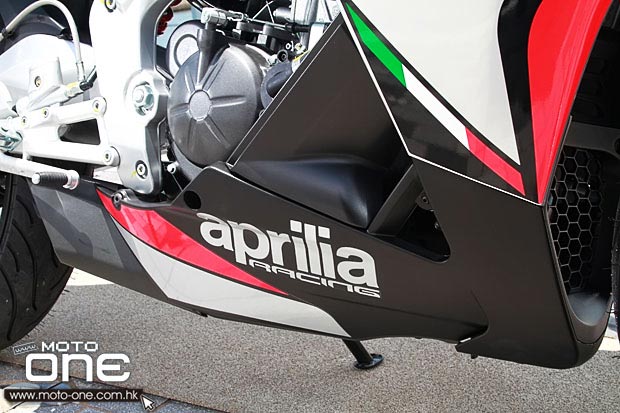

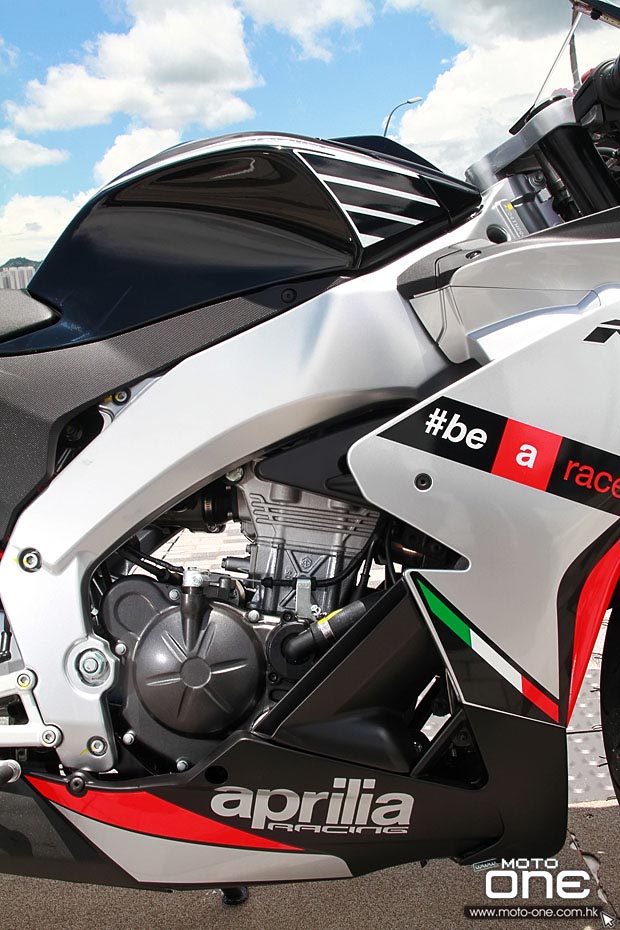

●水冷四冲程DOHC单汽缸4汽门机器及跑车规格的铝合金双翼樑车架。

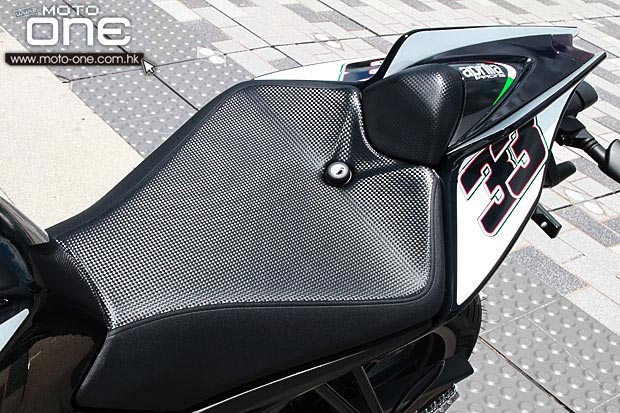

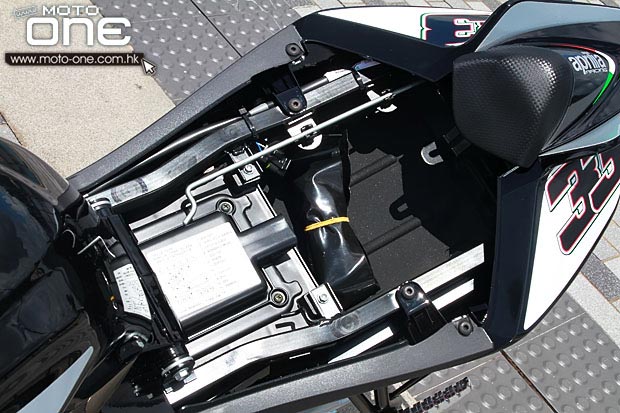

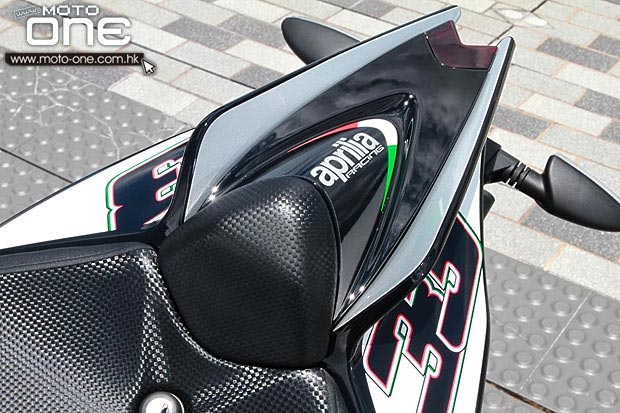

●座位低可存放小量物件。









2014 Aprilia RS4 125 #bearacer 规格表 | ||
尺寸 SIZE | ||
全长 Length | 1,953mm | |
全阔 Width | 740mm | |
全高 Height | 1,138mm | |
轴距 Centre to centre distance | 1,350mm | |
座位高度 Saddle height | 820mm | |
最低离地距 Height from the ground | - | |
净重 Dry weight | - | |
油箱容量 Fuel tank capacity | 14.5L | |
引擎 ENGINE | ||
引擎模式 Engine | 水冷四冲程DOHC单汽缸4汽门 Four stroke liquid cooled single cylinder with electronic injection and 4 valves. |
|
排气量 Total displacement |
125c.c. | |
最大马力 Max. power at the crank | - | |
最大扭力 Max. torque at the crank | - | |
压缩比 Compression ratio | 12.5 ± 0.5 : 1 | |
缸径x冲程 Bore x Stroke | 58mm x 47mm | |
供油系统 Fuel system | 电子燃油喷注系统 electronic injection system |
|
前倾角 Steering angle | - | |
拖曳距 Trail | - | |
起动 Starting | 电动 Electric | |
传动系统 Gear box | 湿式多片6前速,鍊条传动 6-speeds , Chain. |
|
车身 CHASSIS | ||
车架型式 frame | 铝合金双樑车架 Aluminium perimeter frame |
|
前悬掛系统 Front suspension | 直径41mm倒立前叉,110mm行程 41 mm upside down fork, wheel excursion 110 mm |
|

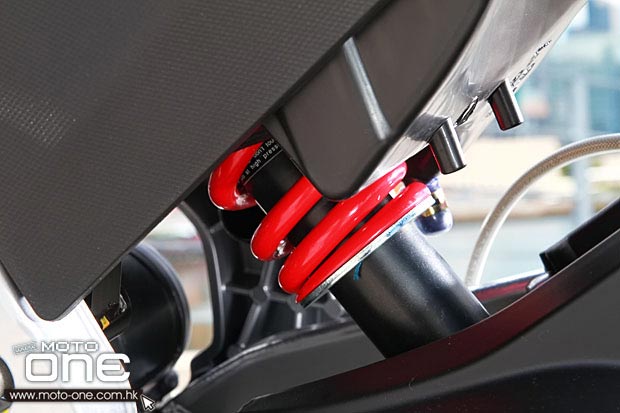

后悬掛系统 Rear suspension | 单筒油压尾避震,130mm行程 Asymmetric swingarm with monoshock, wheel travel 130 mm |
|

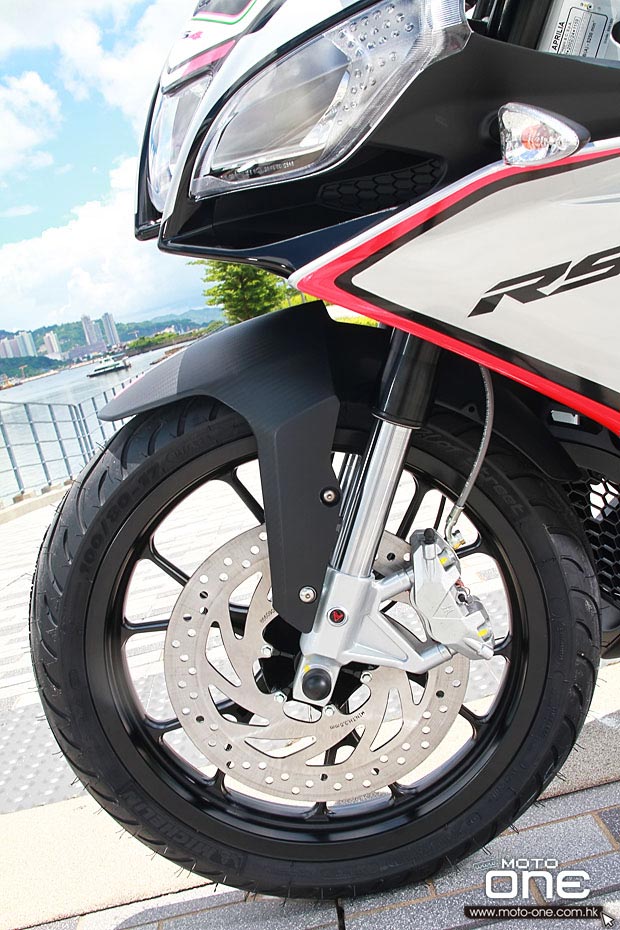

前制动系统 Front Brakes | 300mm钻孔浮动碟配4活塞式卡钳 300 mm stainless steel disc with radial 4 piston calliper |
|

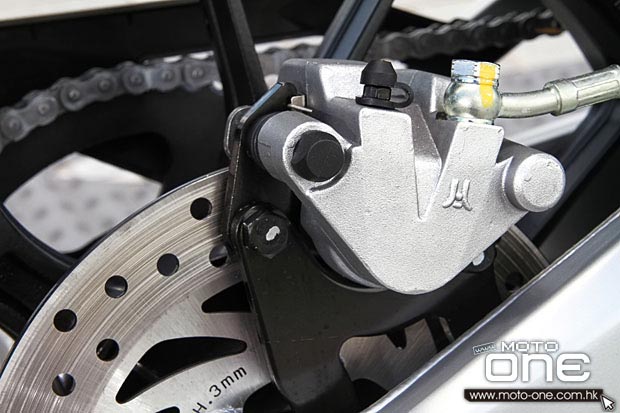

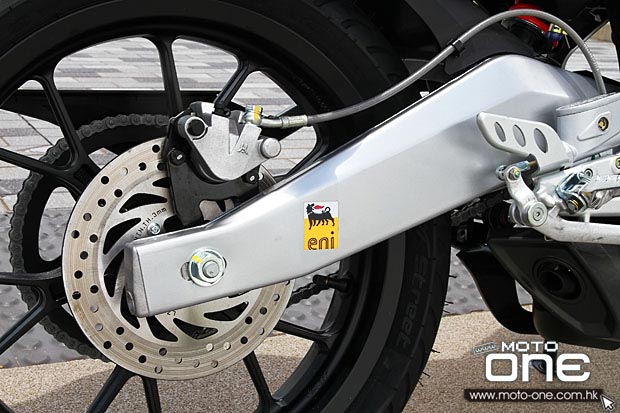

后制动系统 Rear Brakes | 218mm钻孔浮动碟配单活塞式卡钳 218 mm stainless steel disc and calliper with single 30 mm piston |
|
前轮胎 Front Tyres | 110/70 ZR17 | |
后轮胎 Rear Tyres | 150/60 ZR17 |
